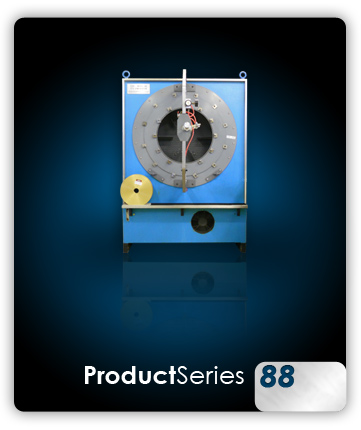

Model 88

Gas turbine and jet engine component testing

CCDI's Largest Area Airflow Comparator

  • Area: 0.425 to 40 Square Inches
Model 55

Vane and vane segment component testing

CCDI's High EFA

  • 0.0477 to 3.05 sq. in. Measurements at 10” H2O (Water Column) , 1.0245 pressure ratio
  • 0.0675 to 4.31 sq. in. Measurements at 5” H2O (Water Column) , 1.012289 pressure ratio
  • 0.151 to 9.64 sq. in. Measurements at 1” H2O (Water Column) , 1.00245 pressure ratio
  • Pressure Range: 0 to 20” H2O (Water Column), 1 to 1.049 pressure ratio

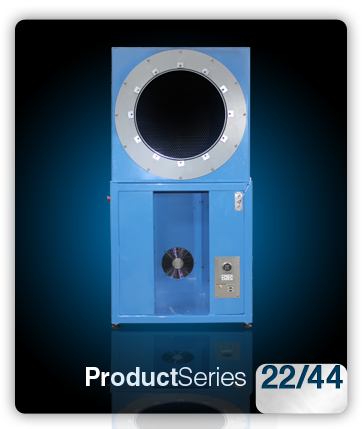

Model 22

Gas turbine and jet engine component testing

CCDI's Small Area Airflow Comparator

  • Area: 0.25 to 14 Square Inches
Model 611

Gas turbine and jet engine component testing

Our Airflow Test Stands were the first the industry to offer test equations for multiple manufacturers. Flow test sequences, called "circuits" can automatically flow air with multiple test steps and with various airflow equations.
