CCDI has a full machine shop for manufacturing components used in our airflow products. Our machines are available for additional work. Click on the Machine Shop Services link and find out more and our capabilities list.

CCDI has a full machine shop that can make things from from design level, produce a prototype and perform production.

Assembly Department:

  • Rockwell Drill Press
  • Welch Scientific "Duo-Seal" Vacuum Model 400

Airflow Department:

  • 1 In-house Model 644H (0.031" to 0.500"
  • 2 Master Sonic Nozzle sets. Diameters: 0.031, 0.044, 0.062, 0.088, 0.125, 0.177, 0.250, 0.353, 0.500 in.
  • 1 In-house Model 611XH - Nozzles are manually configurable up to 0.707" dia.
  • 1 In-house Model 88 - EFA Machine 0.5 to 40 Sq. In. @ 5"H2O
  • 1 Model 63/64 - EFA Machine (in storage)
  • 20 240-Gallon each Air Tank Farm (4800 gallon capacity) 150 PSIG
  • 1 Quincy Compressor 150 PSIG Max
  • 1 Gardner-Denver Compressor 100 PSIG Max
  • 2 Master Sonic Nozzle sets: 0.031, 0.038, 0.044, 0.062, 0.088, 0.125, 0.177, 0.250, 0.353, 0.500, 0.707, 0.999
  • 3 Druck DPI-615 0.025%FS Calibration Meters 0-100 PSIG, 0-50 PSIG, 0-5 PSIG, 0-15 PSIA
  • 2 Thermistor Calibrators 46-120 Deg. F
  • 1 RTD Calibrator 0-250 Deg F
  • 1 E-Type Thermocouple Calibrator 0-250 Deg F
  • 1 Druck 600 0-114 PSIA
  • 1 Ametek Dead Weight Tester 1" H2O to 100 PSIG
  • 1 ASME Nozzle Array 0.5 to 40 Sq. Inches in 0.5" Steps
  • Individual ASME Nozzles from 1.0 to 40 Sq. Inches (1, 3, 7, 18, 23, 27 & 40)
  • Orifice Plates 1" to 60 Sq. In Various Sizes

Machine Shop:

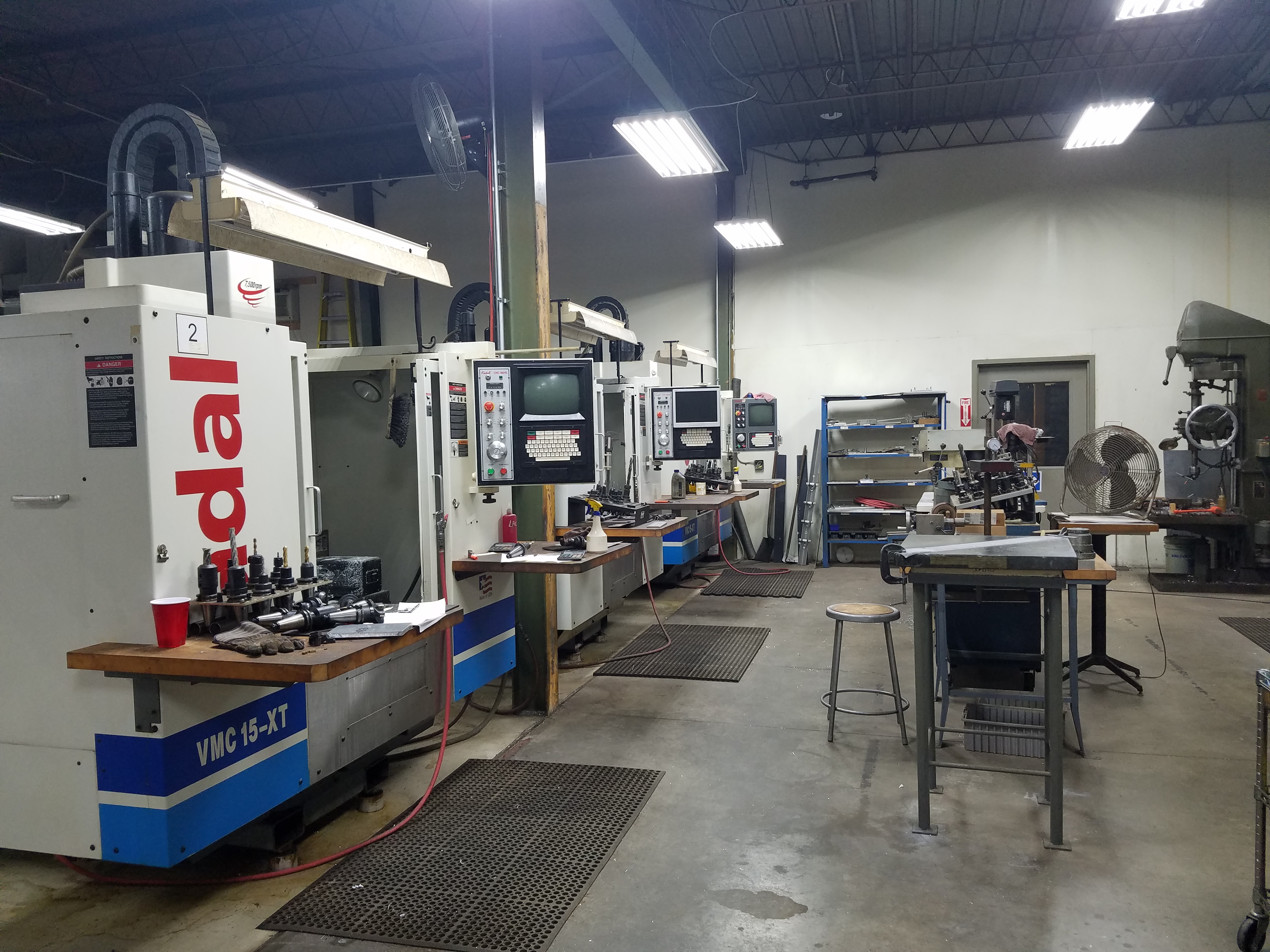

  • 2 Fadal 3-Axis Model VMC15-XT CNC
  • 1 Fadal 4-Axis Model VMC15-XT CNC
  • Delta Drilling Table (for Electrical and Pneumatic panels)
  • 5 10" Drill Presses
  • 1 Floor Press
  • 1 Avey Floor Drill Press
  • 1 Cadallac Lathe CNC 62" between centers
  • 2 Hardinge Precision Lathes
  • 1 Seiki VS CNC w/Analam Controls
  • 1 Bridgeport CNC w/Dynapath Controls
  • 1 Rockwell Manual Lathe 48" between centers
  • Miller Syncrowave 250 Welder w/argon
  • 30 Ton Hydraulic Press
  • Lucifer Model 46-K24 Furnace 1600 Deg. F Max
  • Wire Gauges
  • Various Calipers

Cutting & Polishing Area:

  • 1 Sonic Nozzle Polishing Motor
  • 1 Polishing Motor
  • 1 Varispeed Polishing Motor
  • 1 Drake Johnson VH-24 Vertical Band Saw
  • 1 Cincinnati Surface Grinder
  • 2 Grinding Wheel Units
  • 1 Buffing Wheel Unit
  • 1 Oscillating Sander
  • 1 4" Wide Belt Sander with 20" Area
  • 1 "Zero" Blast Peening Machine
  • 1 Vibrodyne Deburr/Shaker
  • 2 12" Delta Disc Sanders

Welding/Sanding Fabrication Area & Shipping Dock:

  • 1 Forklift
  • 1 Table saw
  • 1 Vertical Band Saw
  • 1 Do-all C-916 Horizontal Band Saw 24"Sq
  • 1 Miller Millenium 350P Welder w/argon
  • 1 Acetylene Torch
  • 1 Hobart Mega Mig 450-LS
  • 1 Quincy Compressor
  • 1 Scotchman 4014C 40 Ton Hydraulic Ironworker
  • 1 Peck, Stow, Wilcox 42" Shear
  • 1 Peck, Stow, Wilcox 42" Roller
  • 1 Whitney-Jensen 42" Bender
  • 2 Graymills Part Washers/Degreaser
  • 2 Hand Trucks

Most CAD work performed with AutoCad. We also use BobCAD and Surfcam
