Model 22/44 Scientific Effective Flow Area Test Machine
Gas turbine and jet engine EFA component testing
Model 22/44
The Model 22 and Model 44 are perfect for accurate airflow testing of small segments, vane rings and Nacelle testing. This airflow machine is an very accurate and stable EFA instrument for area airflow measurements of vane rings, combustors, segments and diffuser rings. These EFA machines can also serve multiple purposes for your testing requirements.

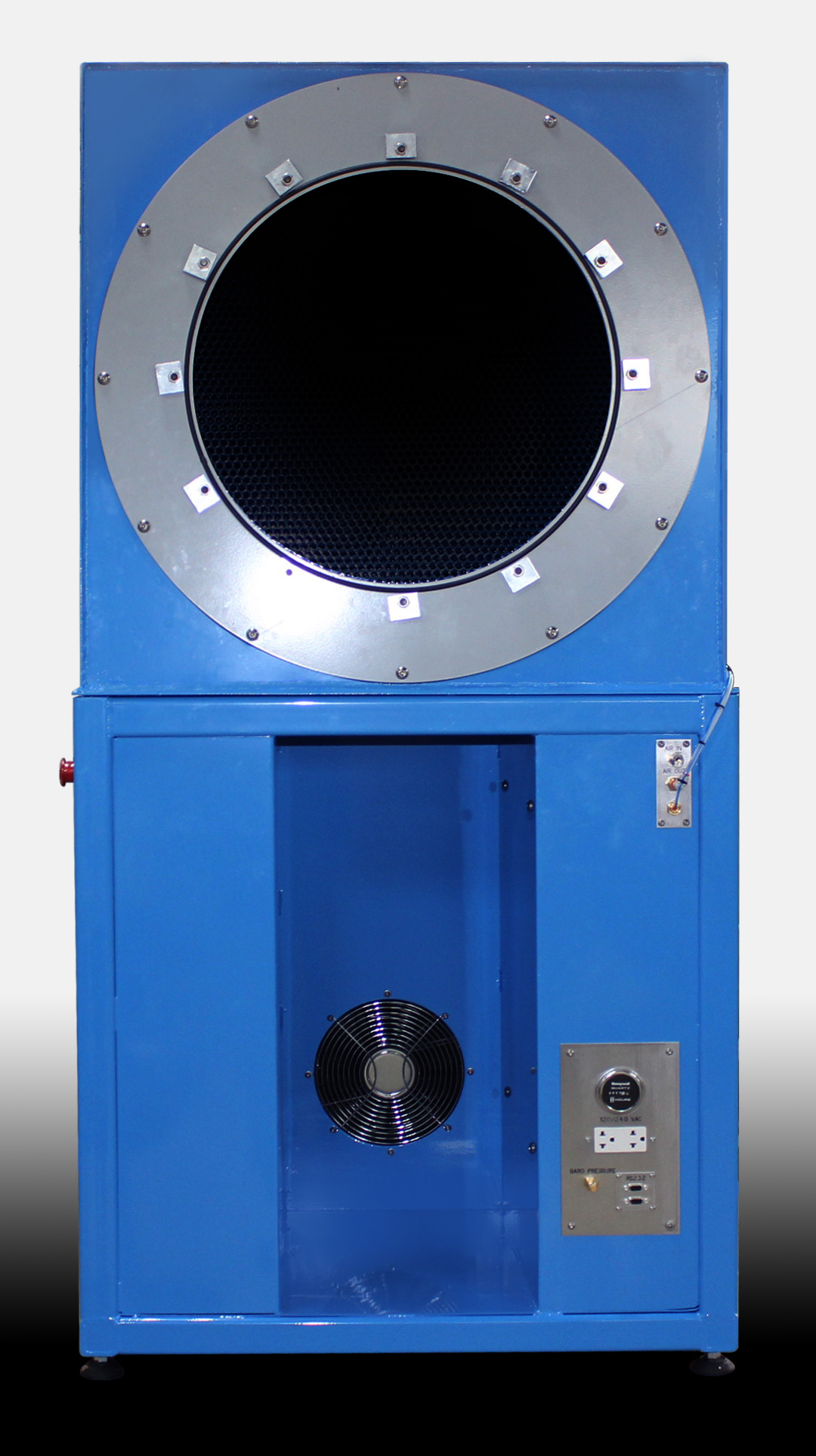

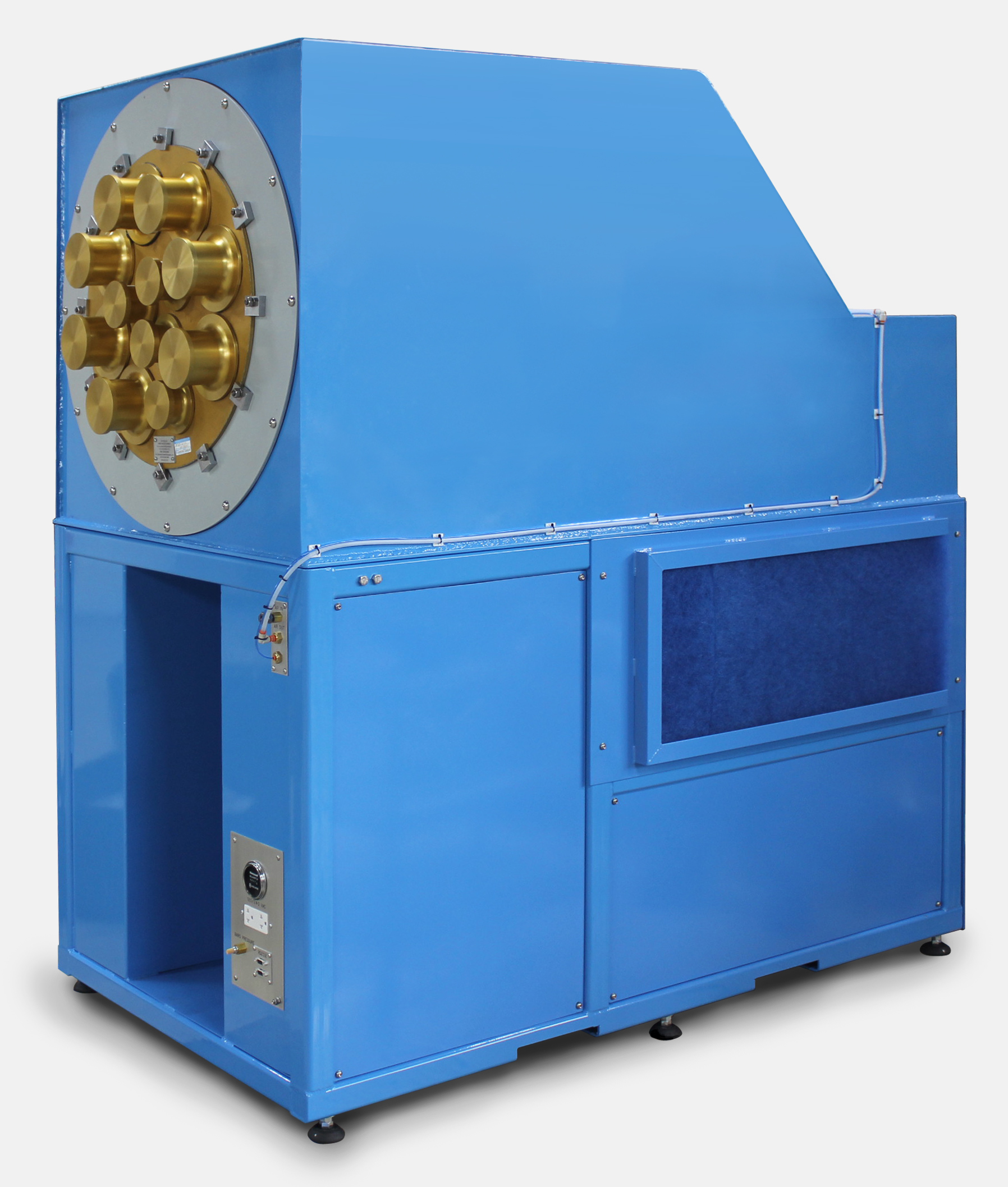

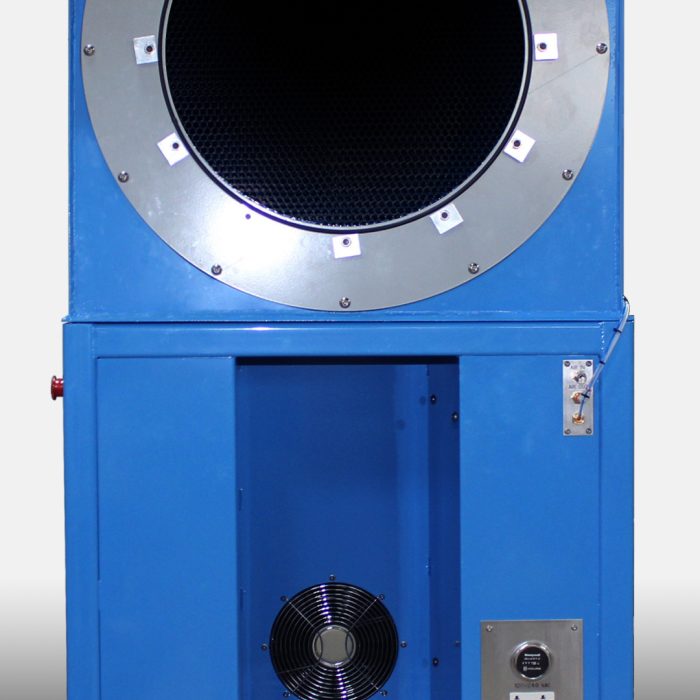

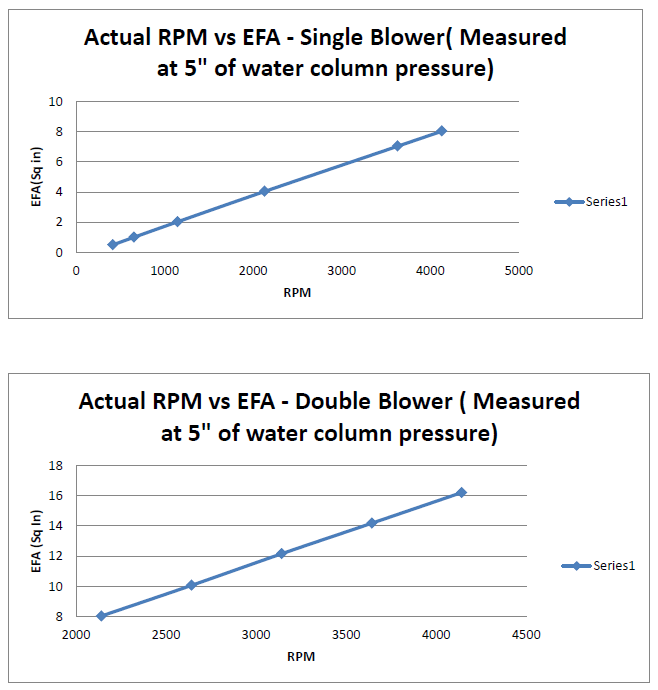

Flow Capabilities
- Area:
- Model 22 – (5″ H2O) 0.25 to 16 Square Inches (18 Sq In if RPM @ 4500)
- Model 44 – (5″ H2O) 0.5 to 22 Square Inches (24 Sq In if RPM @ 4500)
- Pressure: 0″ to 20″ Water Column Gauge
Specifications
- NIST Traceable EFA
- Programmable Part Profile for Fast Testing
- All Density Parameters are measured
- Room and Plenum Temperatures
- Barometric and Plenum Pressures
- Dew Point (Optional)
- GE, P&W;, ABB, Honeywell, Siemens, Rolls-Royce, and Solar Parts Testing
- 10 HP Blower Motor
- Vector Motor Controller for 1.0 to 4,999.9 RPM
- Less than one minute per EFA measurement
- Orifice plates and ASME subsonic nozzle masters
- Customer correlation table for each part
- Four QC reports, label and data acquisition file
- Free Operator Training, Testing and Certification

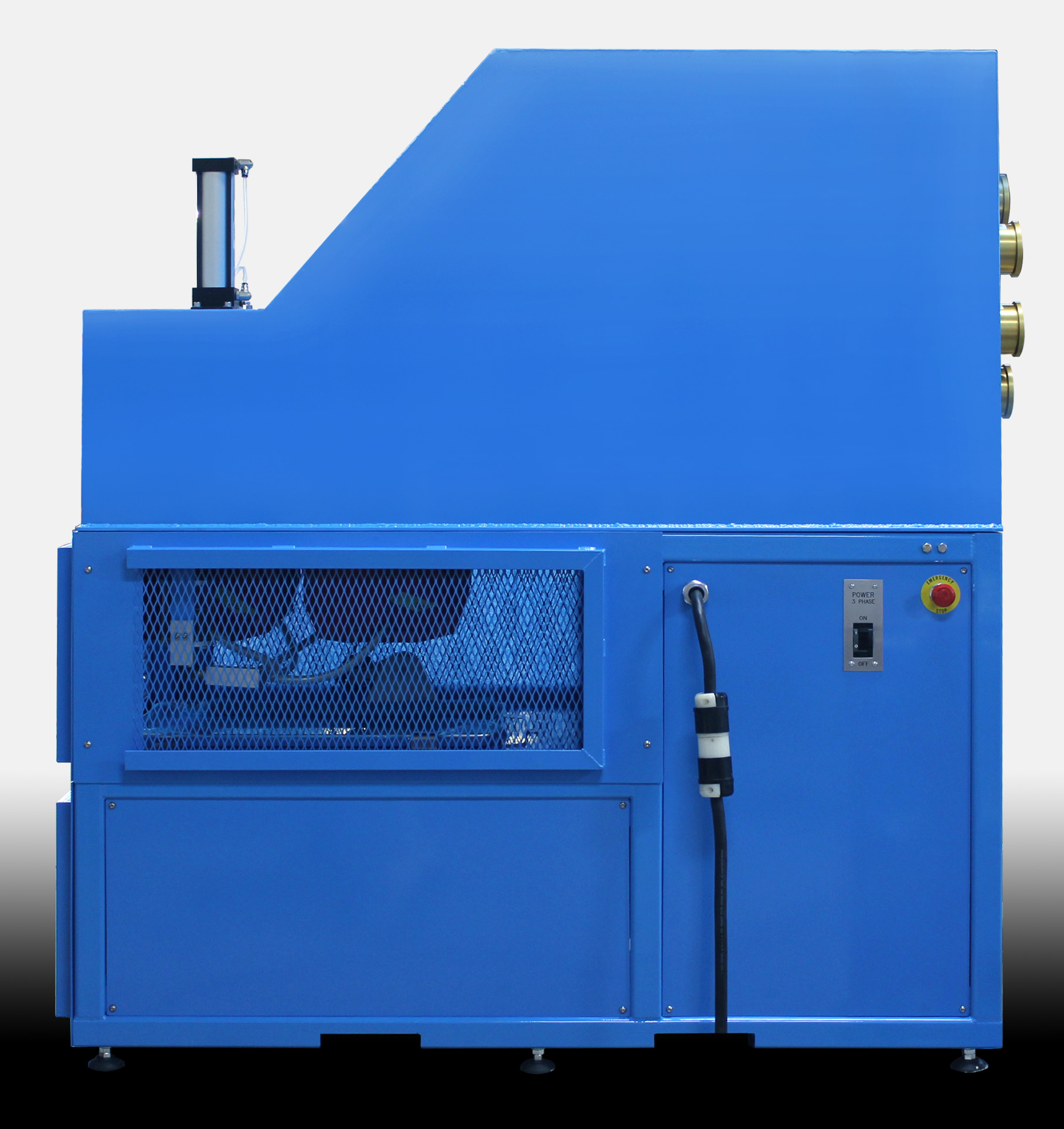

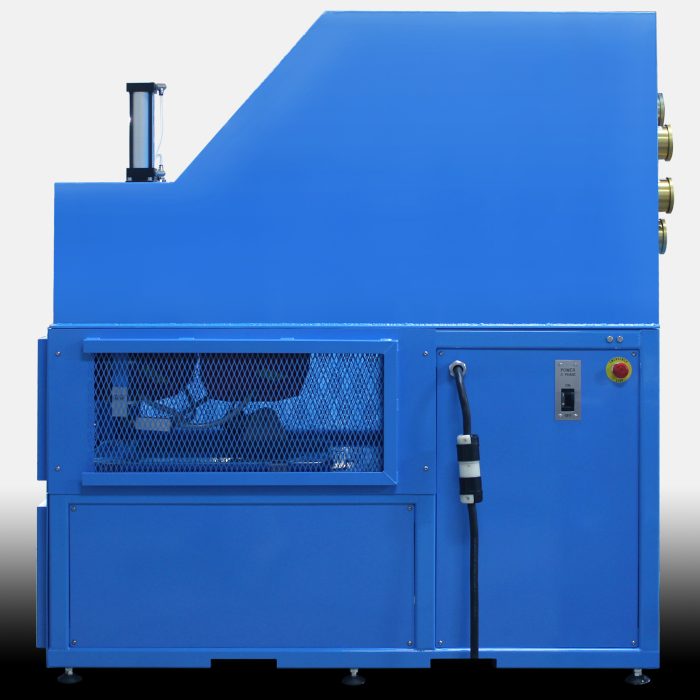

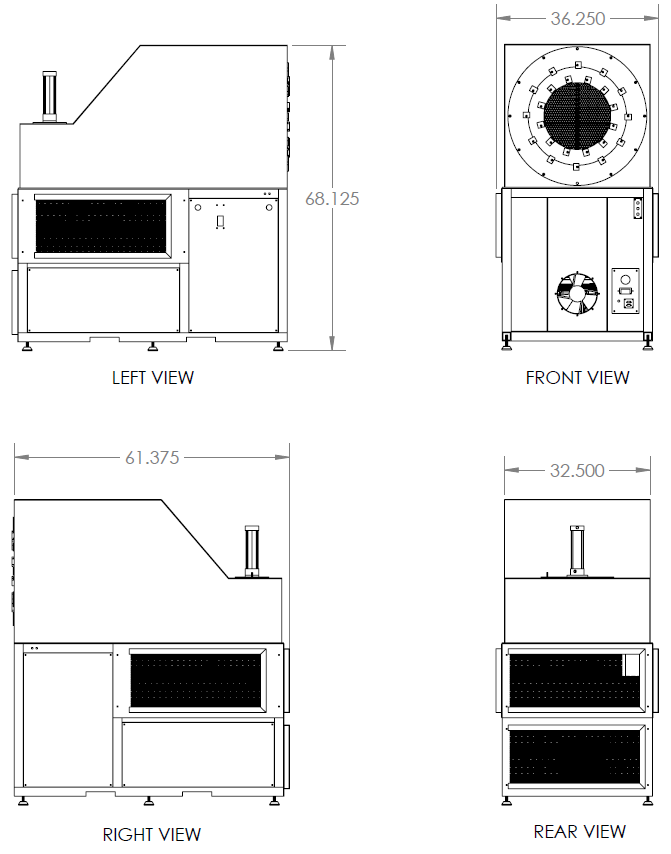

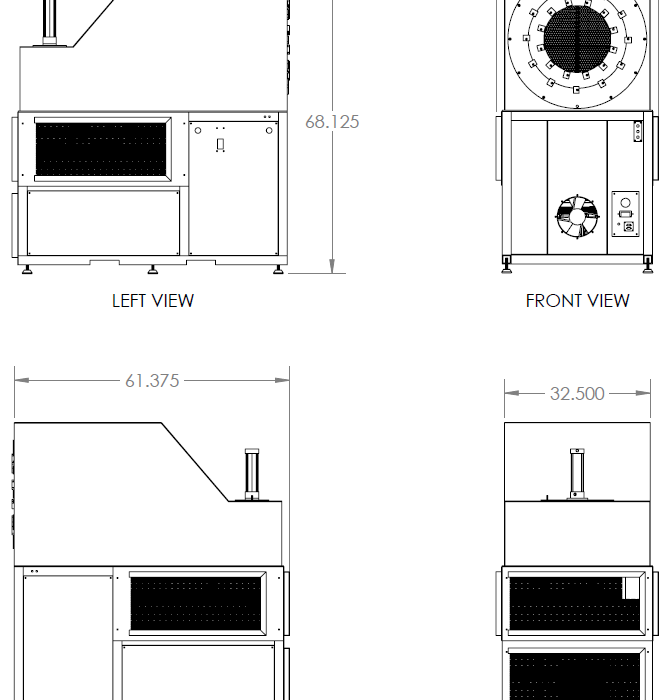

- Shipping weight without crate is 950 lbs.
- One Year Warranty on Parts and Labor
Need more accuracy? CCDI can offer Digital Transducers.
